XTSC
-

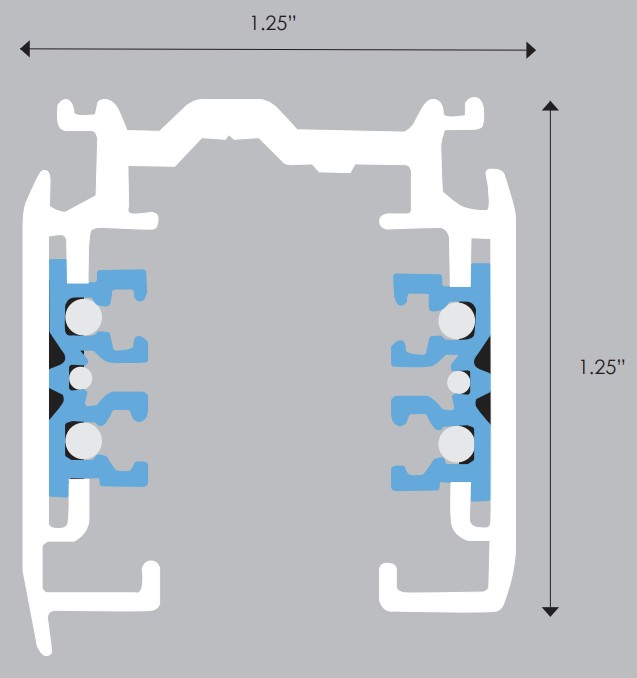

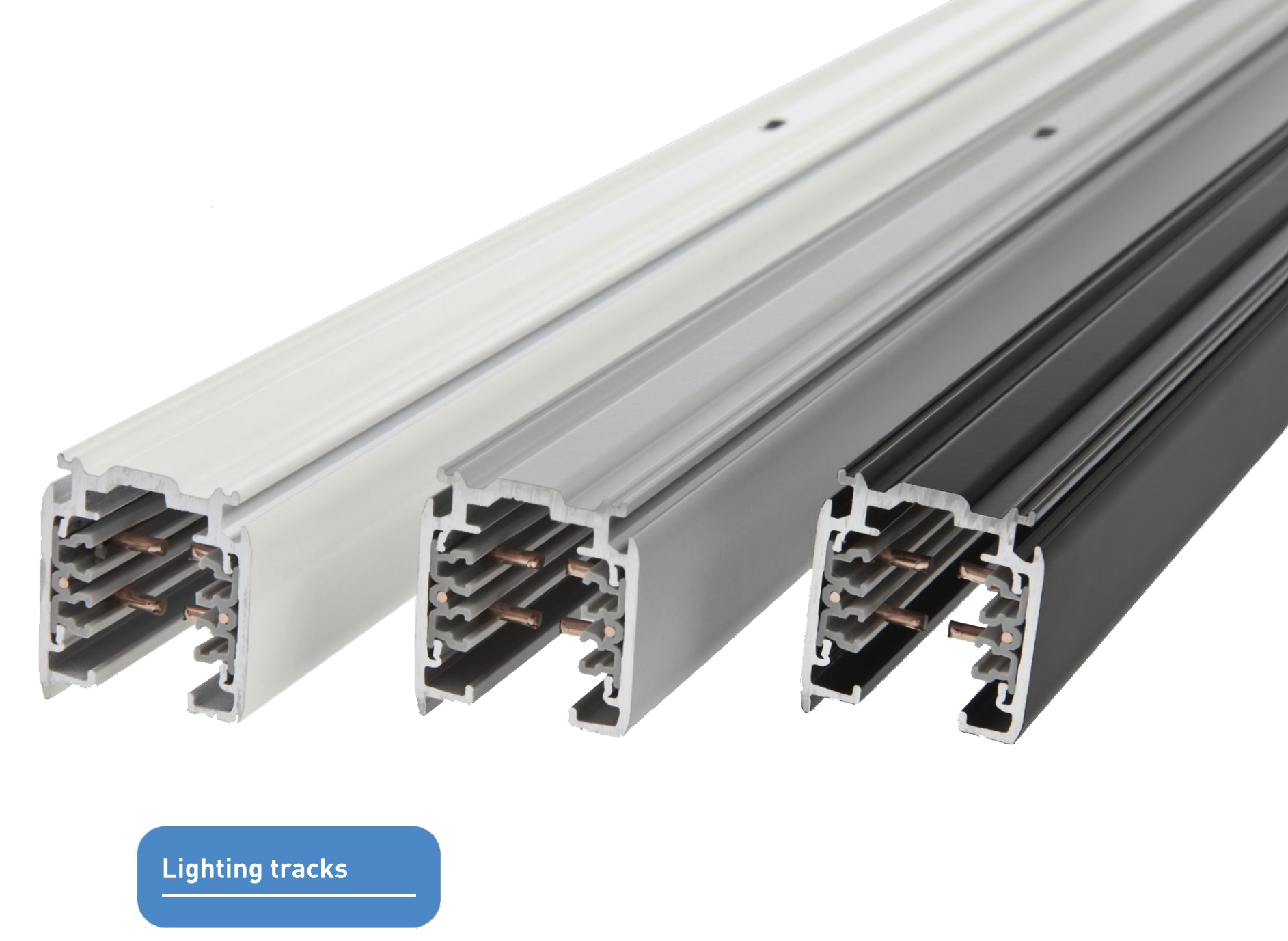

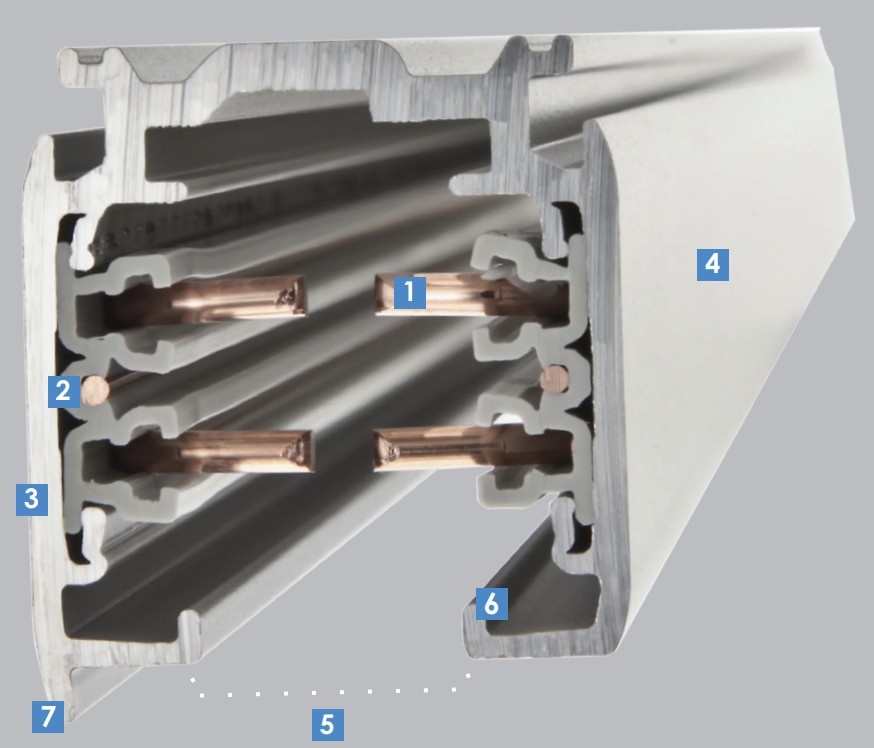

XTSC Track

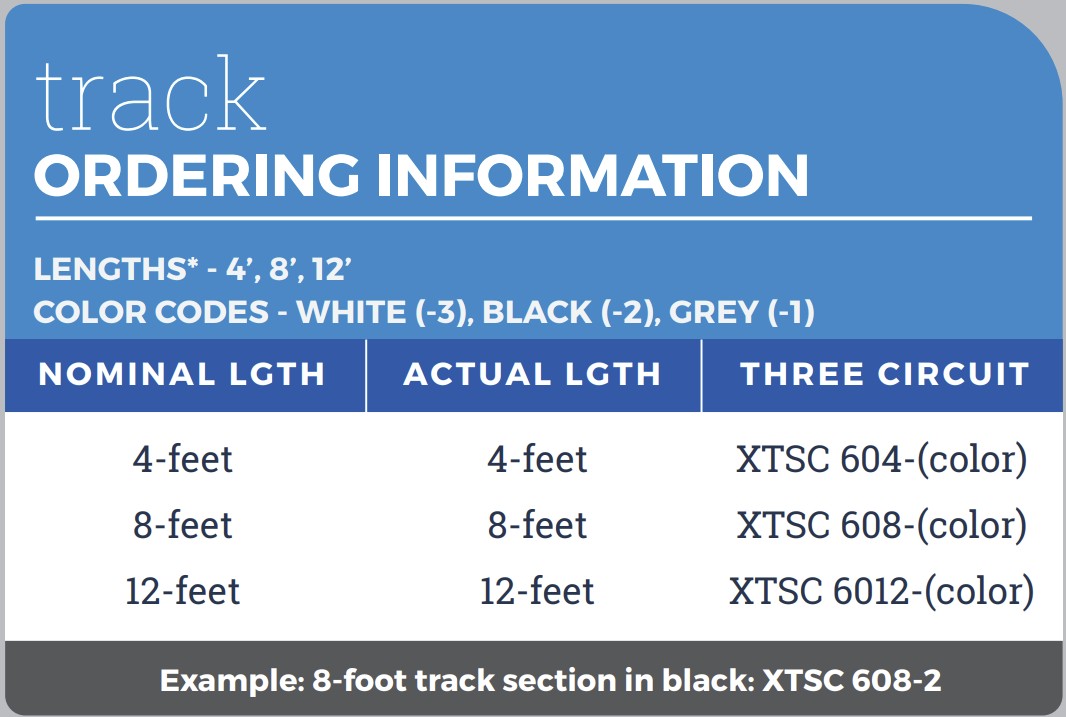

Track Ordering Info:
Lengths: – 4’, 8’, 12’
Color Codes: – White(-3), Black(-2), Grey(-1)

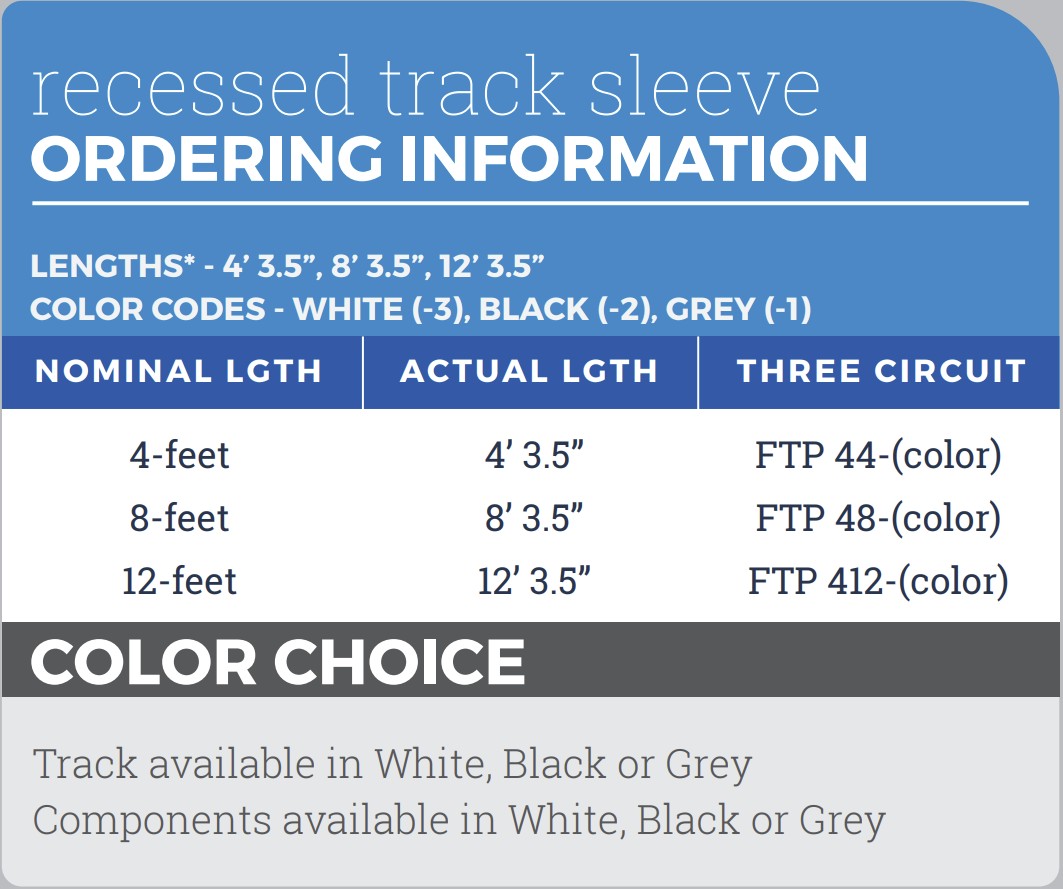

XTSC 604-(color), XTSC 608-(color), XTSC 6012-(color)Recessed Track Sleeve Ordering Info:
LENGTHS* – 4’ 3.5”, 8’ 3.5”, 12’ 3.5”
Color Codes: – White(-3), Black(-2), Grey(-1)
FTP 44 -(color), FTP 48-(color), FTP 412-(color)
Back to XTSC page
-

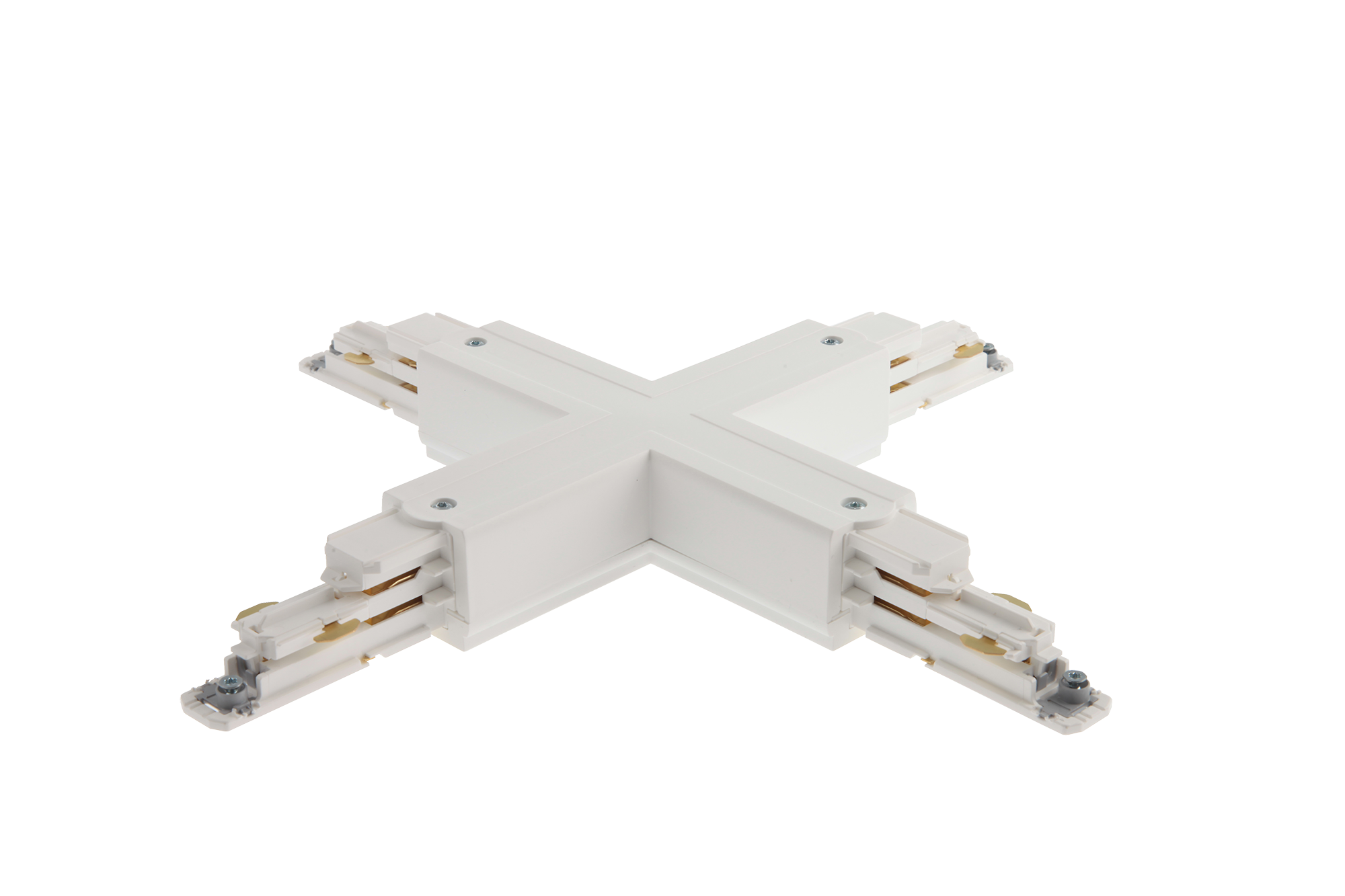

XTSC 638 (Feedable X-Connector)
XTSC 638 (-1, -2, -3)
Back to XTSC page -

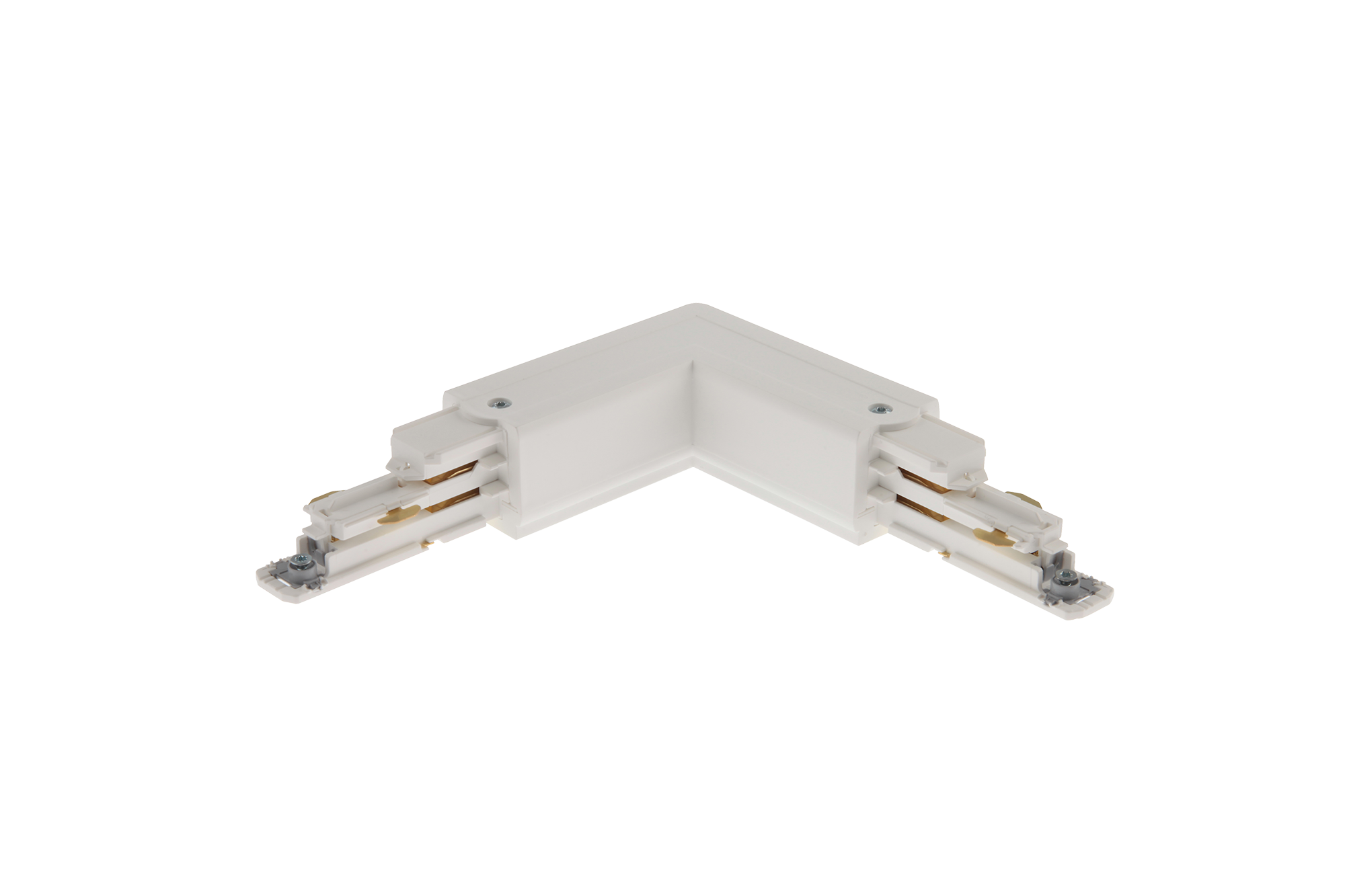

XTSC 634 & 635 (L-Connector)
Inside polarity XTSC 634 (-1, -2, -3)
Outside polarity XTSC 635 (-1, -2, -3)
Back to XTSC page -

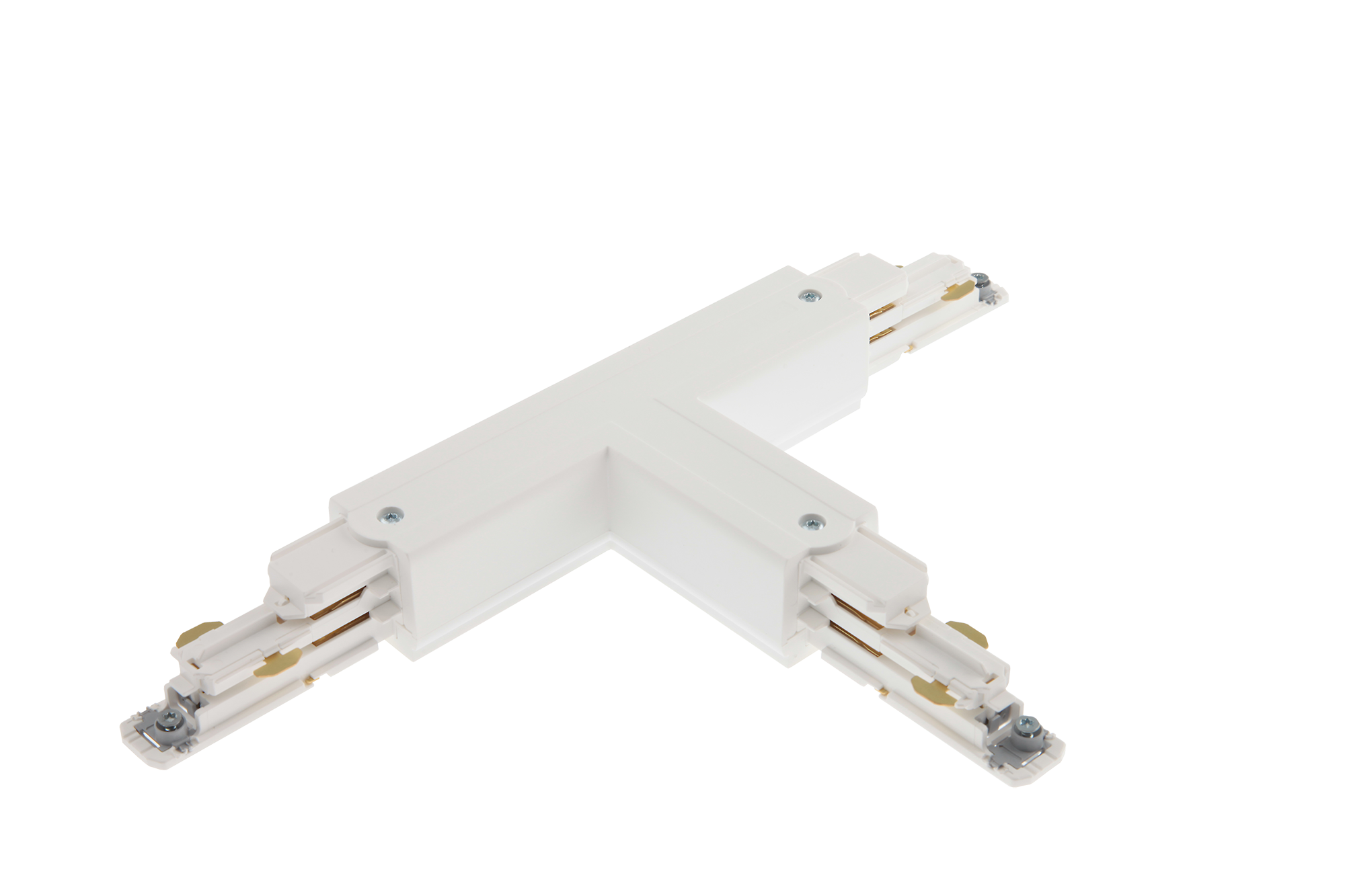

XTSC 636, 637, 639, 640 (T-Conctr.)
Outside left polarity XTSC 636 (-1, -2, -3)
Inside right polarity XTSC 637 (-1, -2, -3)
Outside right polarity XTSC 639 (-1, -2, -3)
Inside left polarity XTSC 640 (-1, -2, -3)
Back to XTSC page -

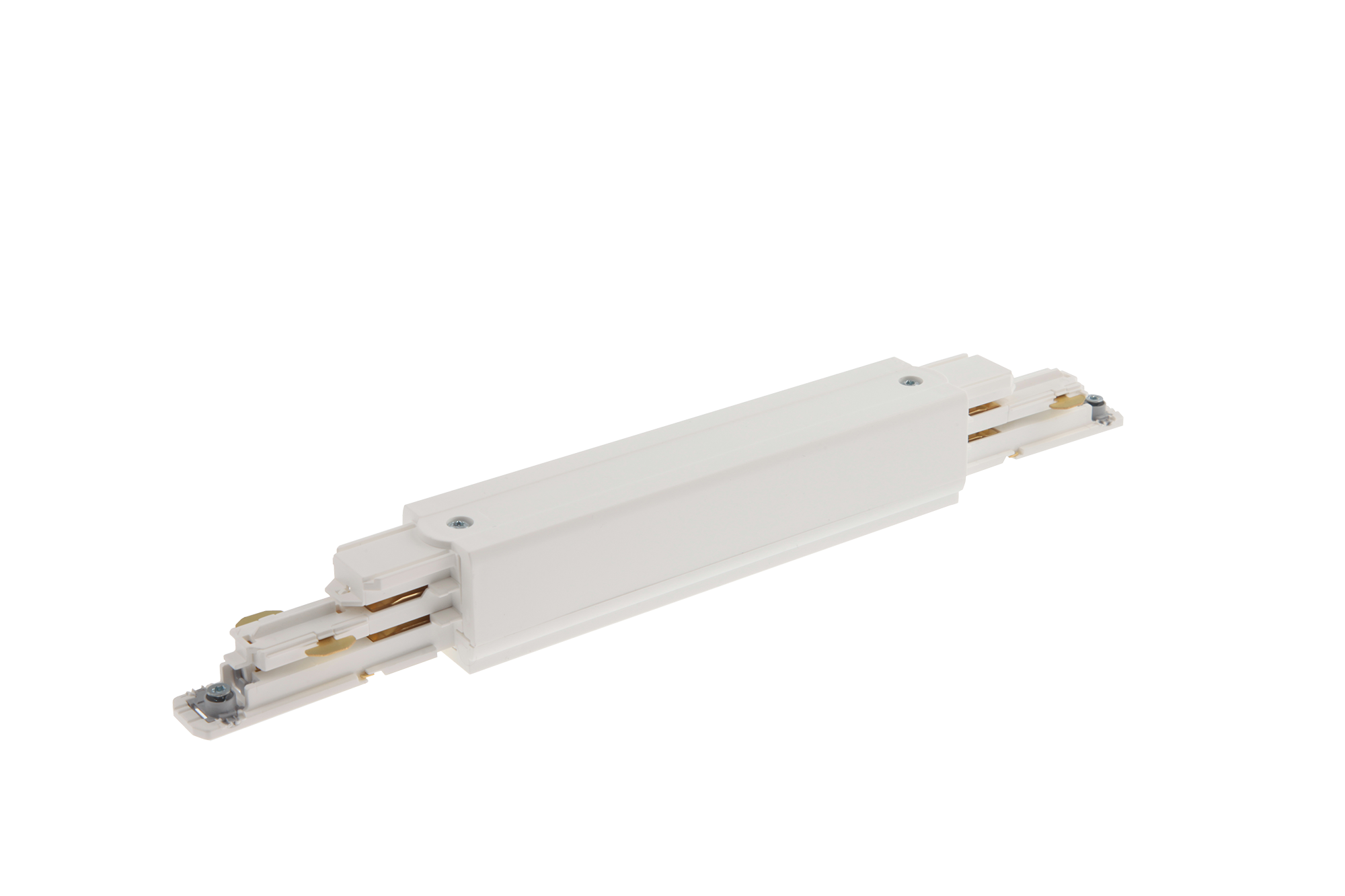

XTSC 614 (Live Middle Feed)
XTSC 614 (-1, -2, -3)
Back to XTSC page -

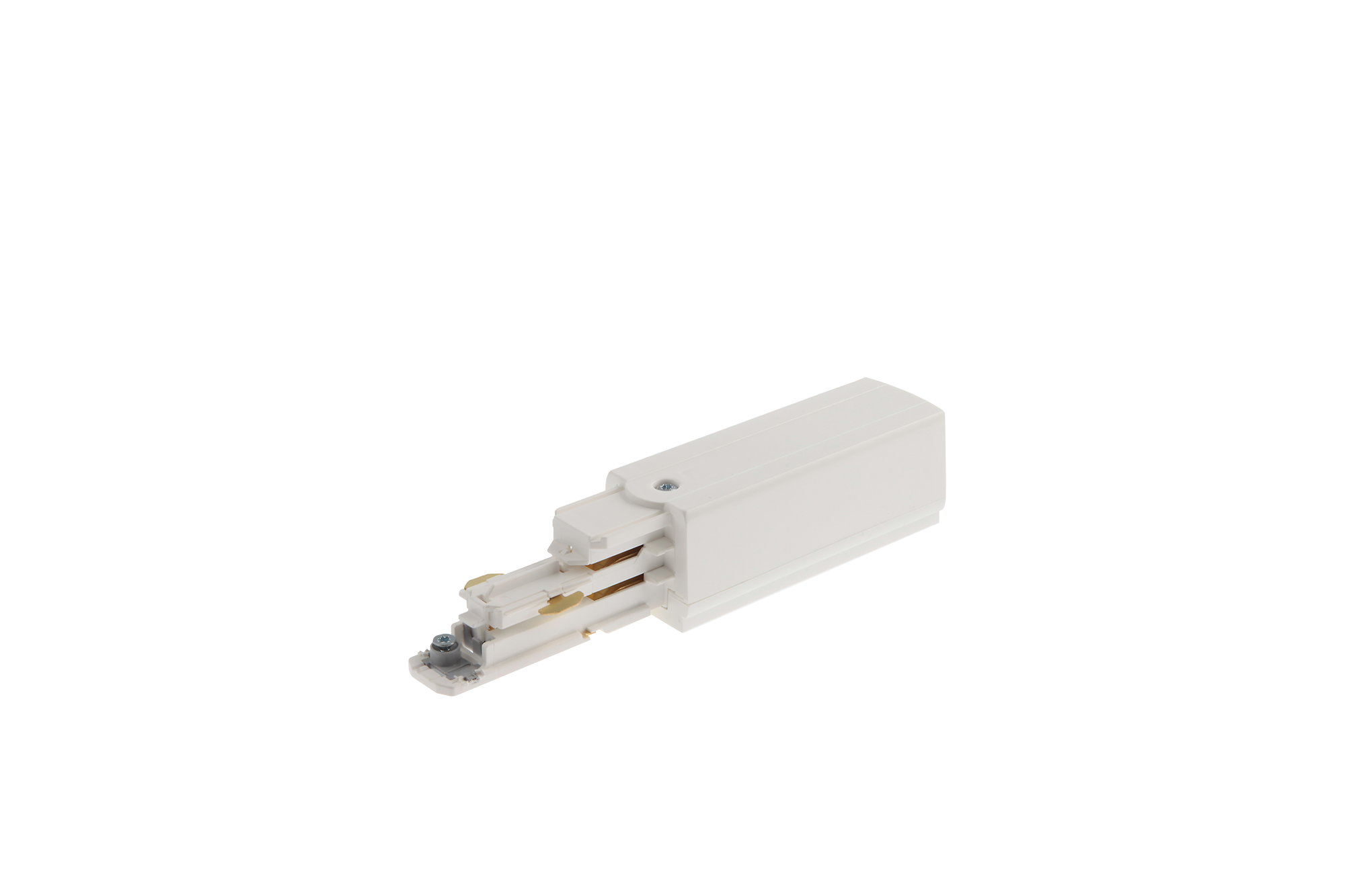

XTSC-611 (Live End Feed)
XTSC 611 (-1, -2, -3)
Reverse Polarity XTSC 612 (-1, -2, -3)
Back to XTSC page -

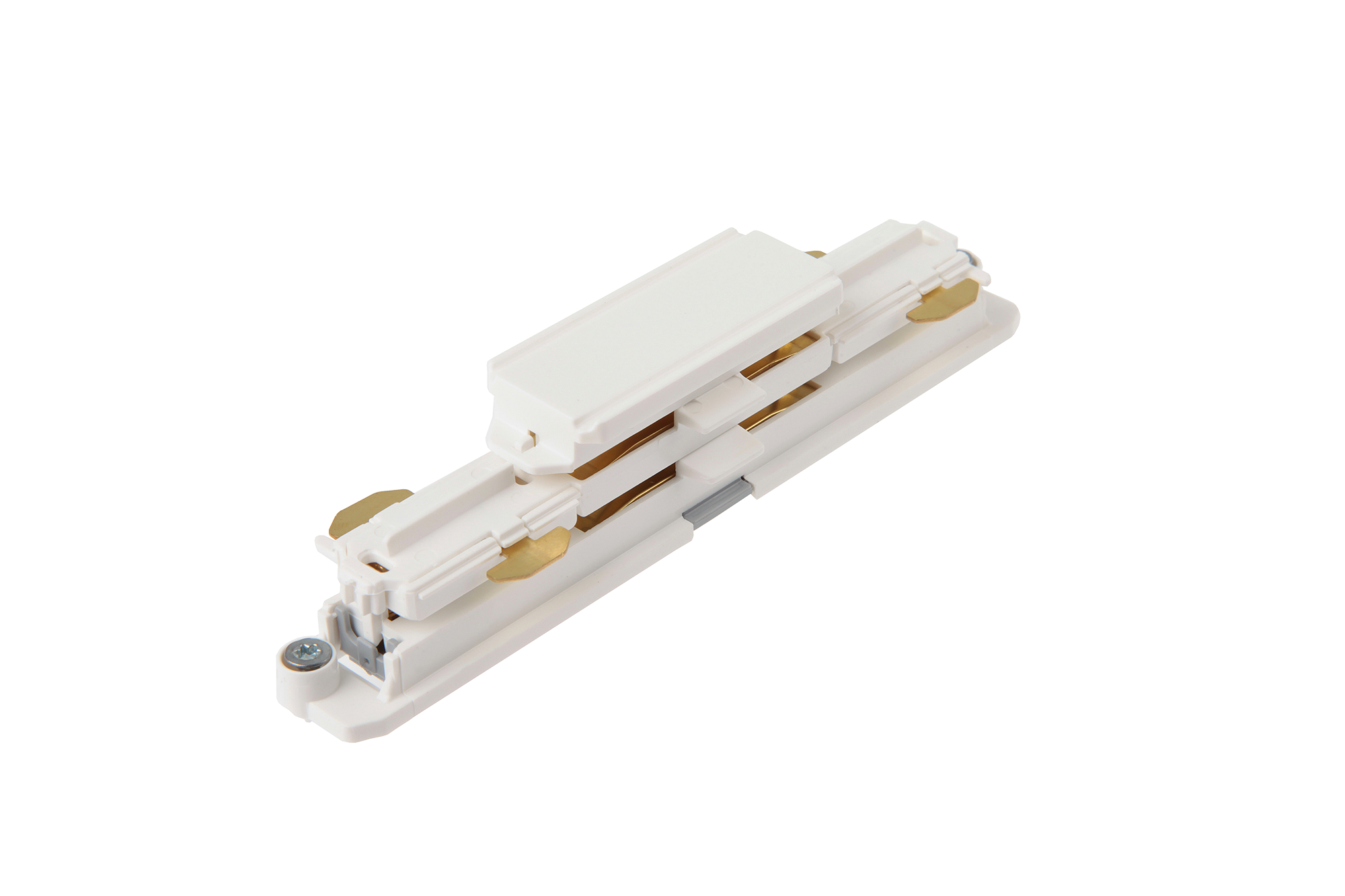

XTSC-621 (Coupler)
XTSC 621 (-1, -2, -3)
Back to XTSC page -
GES-15 (Outlet Box Cover)
GES 15 (-1, -2, -3)
Back to XTSC page -
XTS-41 (Dead Ends)
Must be ordered separately
XTS 41 (-1, -2, -3)
Back to XTSC page -
XTSV-12 (Track Length & Field Cutting Tool)
All-in-one hand tool bends conductors to
manufacturer’s specifications and includes gauge
to verify correct length
XTSV 12
Back to XTSC page
-
XTSA-61, XTSA-57 (Nipple Rotating)
XTSA 61/ 12-9 (12mm)
XTSA 57/ 8-9 (8mm)Strain Relief
XTSA 510 (-2, -3)
Back to XTSC page -
SP4E,L,T,X (End Feed Stem Suspnsn. Point)
Includes bracket & cover (Stem not included)
SP4E (-2, -3) Also available: specify
SP4L, SP4T, or SP4X for L, T, or X configurations
Back to XTSC page -
SPUS (Stem Kits)
Includes stem & canopy. Available in 12, 18, 24, 48, inch lengths
SPUS (length)(-2, -3)
Back to XTSC page -
Threaded Rod Mount
Mounting Clip – SKB 12 or SKB 10 (-1, -2, -3)
Ceiling Cup – SKB 30 (-2, -3)
Threaded Rod – SKB 31
Back to XTSC page -
Universal Stem Suspension Point
Includes bracket & cover (Stem not included) SP4P (-2, -3)
Back to XTSC page -
Cable Mount
Cable (available in 5’, 9’, 15’ lengths) SKB 34
Ceiling Cup – SKB 30 (-2, -3)
Mounting Clip – SKB 12 (-1, -2, -3)
Back to XTSC page -

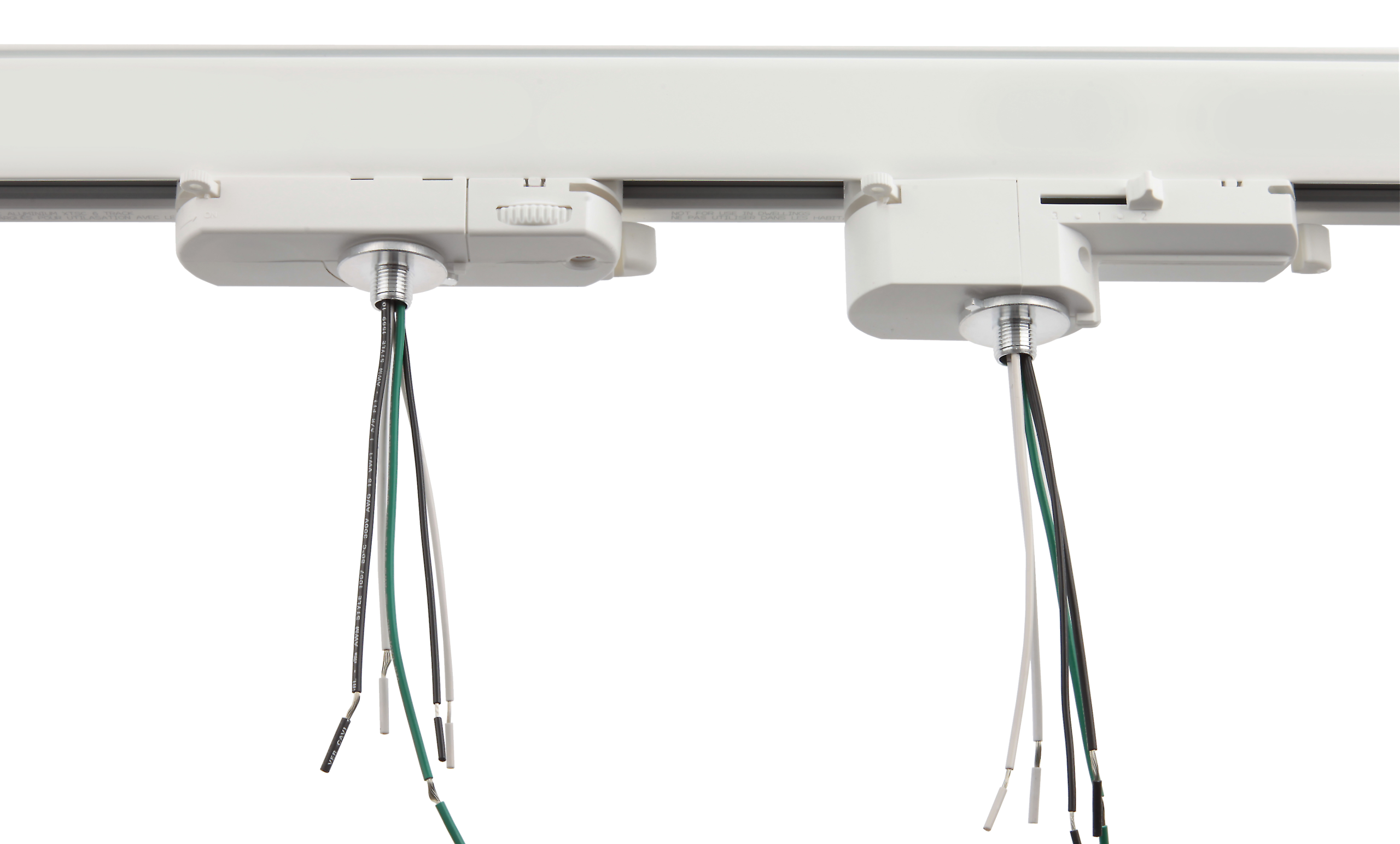

GAC-69 & GAC-600 (Prewired Adapters)
Both have 0-10V and 120V Control
Holds 10 lbs max GAC 69 (-1, -2, -3)
Holds 20 lbs max GAC 600 (-1, -2, -3
Back to XTSC page -

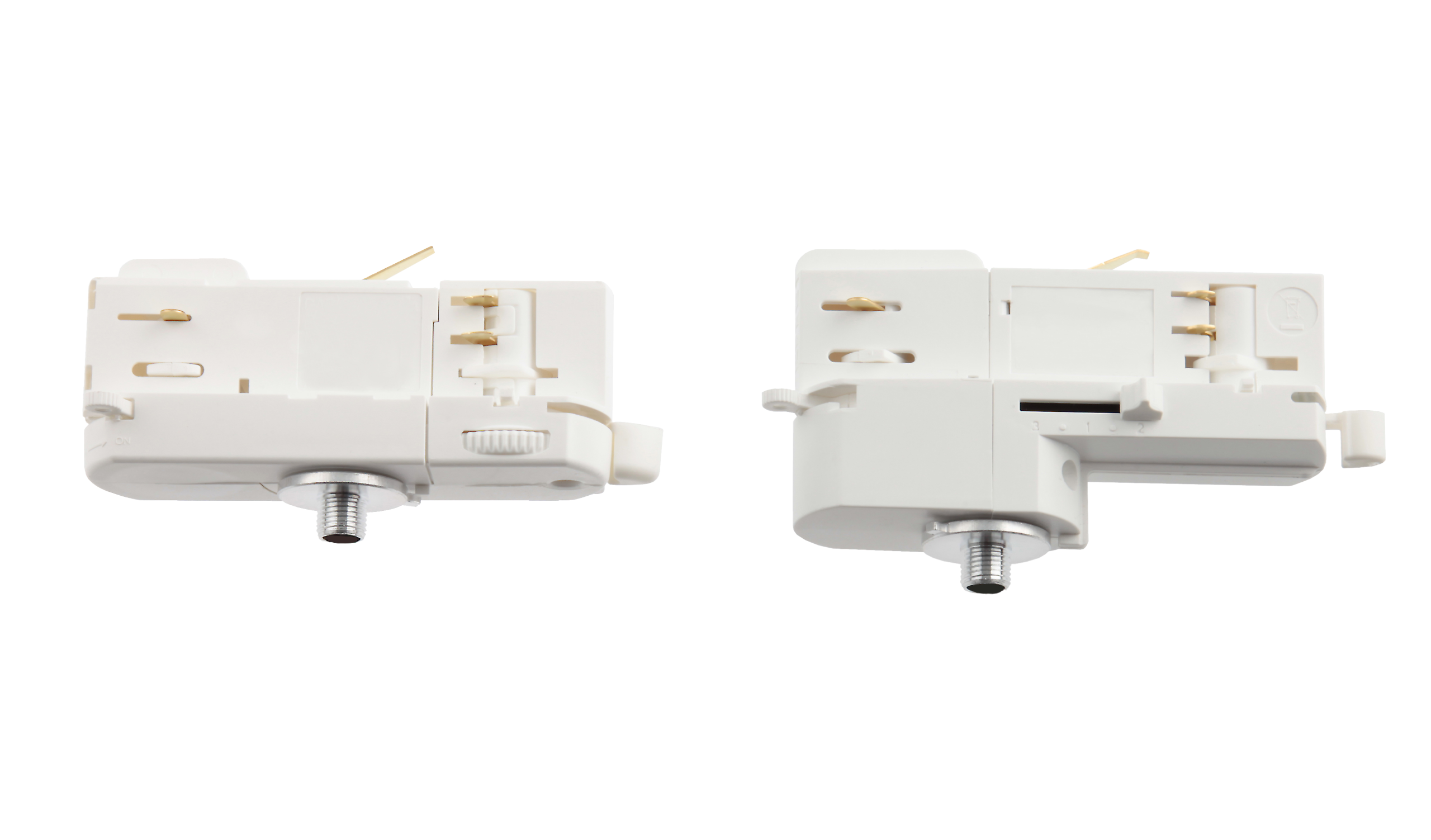

GAC-69, 600 (Unassembled Adapters)
Both have 0-10V and 120V Control
Holds 10 lbs max GAC 69 (-1, -2, -3)
Holds 20 lbs max GAC 600 (-1, -2, -3
Back to XTSC page
-
SKB(X), (T)-12 (Track Mounting Clips)
Recessed T Grid Clip SKBX 12 (-2, -3)
Standard T Grid Clip SKBT 12 (-2, -3)
Standard Track Clip SKB 12 (-1, -2, -3)
Standard Track Clip SKB 10 (-1, -2, -3)
Back to XTSC page -
Track Mounting Clip For M6 or 1/4″ – 20 UNC Rod
Thread: M6 1/4”-20 UNC Fmax 150N
SKB 11R-1UL (-1)
SKB 11R-2UL (-2)
SKB 11R-3 SKB 11R-3UL (-3)
Back to XTSC page -
Track Mounting Clip For DIA 1.5mm Wire
Fmax 150N
SKB 11WL (-1, -2, -3)
Back to XTSC page -
SKB-18 (Extended Suspension Bracket)
For Looped Aircraft Cable
SKB 18 (-1, -2, -3)
Back to XTSC page -
SKB-16 (Suspension Bracket)
For Looped Aircraft Cable
SKB 16 (-1, -2, -3)
Back to XTSC page
